ATS Interlocked Lathe Guard, OSHA Compliant Hinged Chuck Shield for up to 12" Chucks, 18" Wide with Safety Switch, Made in USA, LG-TR3-18-SK1

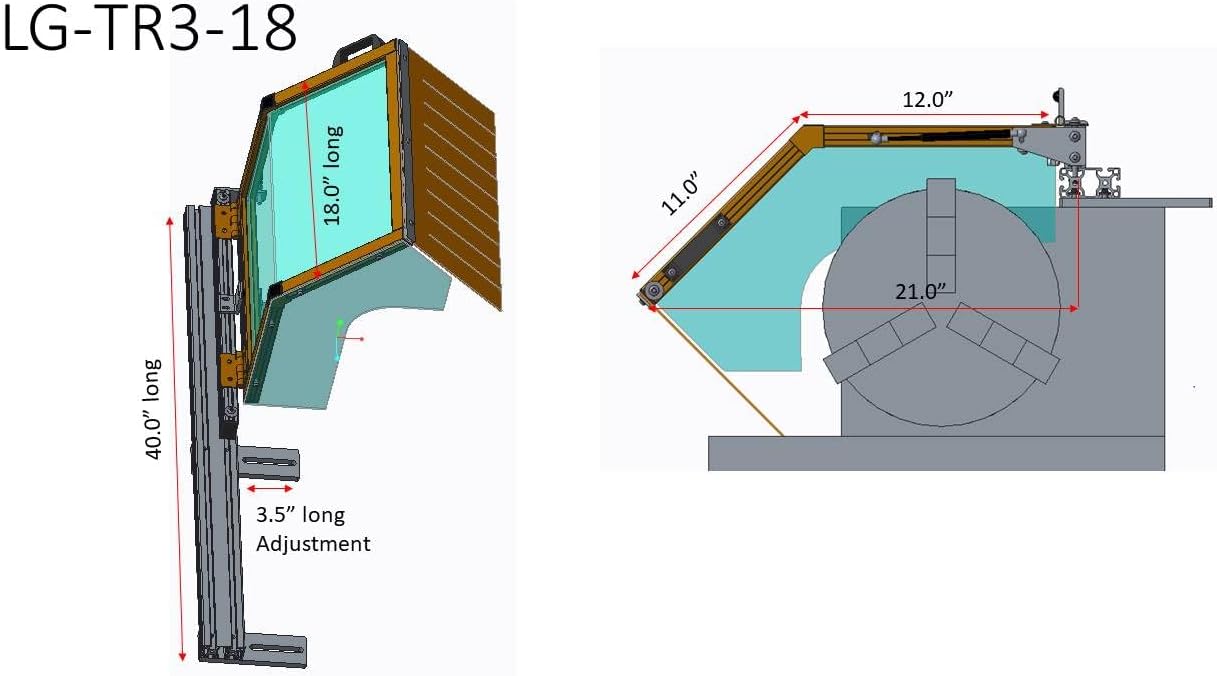

Hinged lathe guard fits most common small to mid size metal lathes with up to 12-inch diameter chucks (maximum). Guards are available in a 12" wide or 18" wide (most popular) version. Interlocked models with a safety switch are available. Select from menu when ordering. Constructed from aluminum extrusion and 1/4" thick, replaceable polycarbonate (lexan). The included side lexan panel prevents reach-in and inadvertent contact with the rotating chuck, when installed and trimmed correctly to fit. Powder coated "OSHA Safety Orange" Mounts onto the lathes gearbox by using the adjustable brackets to bolt to the machine's existing gearbox bolt holes. Customer supplies bolts approximately 3/4" longer than the existing ones. Slotted brackets can be flipped around on the mounting extrusion and have 4" of slot to allow front to rear adjustment during installation. The gas spring aids in opening and keeps the guard hinged back well out of the way for setup and part changes. The front PVC strip curtain provides more chip containment and protection, while allowing flexibility in the access to the compound handle

• Versatile Fit for Various Lathe Sizes: This lathe chuck cover is designed to fit most common small to mid-size metal lathes with up to a 12 inch diameter chuck maximum. Slotted brackets can be flipped around on the mounting extrusion and have 4" of slot to allow front to rear adjustment during installation.
• Efficient Construction: Built with durability in mind, this lathe guard is constructed from industrial aluminum extrusion, offering long-lasting strength and resilience. The gas spring helps in opening the guard and keeps it in open position for set-up and part change further enhancing the guard's functionality, ensuring smooth operation and reliable performance over time.
• Enhanced Safety Features: The lathe guard window is made from 1/4" thick Lexan (polycarbonate), providing exceptional impact resistance and robust protection. This shield covers a wide area, ensuring maximum safety for the user. The guard is finished with PPG's powder-coated "OSHA Safety Orange" paint, making it highly visible and adding an extra layer of safety by increasing its visibility in a workshop setting.
• Sturdy Mounting Method: Mounts onto the lathes gearbox by using the adjustable brackets to bolt to the machine's existing gearbox bolt holes with an optional lathe chuck guard mount style - bolt to side of gearbox. Customer supplies bolts approximately 3/4" longer than the existing ones. This provides a strong and stable foundation for the lathe guard. Its construction ensures that the guard remains securely in place during operation, contributing to a safer working environment.
• Multiple Versions Available: This lathe guard is available with or without a safety interlock switch. This is the interlocked version. Safety switches are rated to only 2 amps and require some form of motor control to adapt to your 3-phase machine. Safety interlock retrofit can be purchased and easily added to existing guards later.
